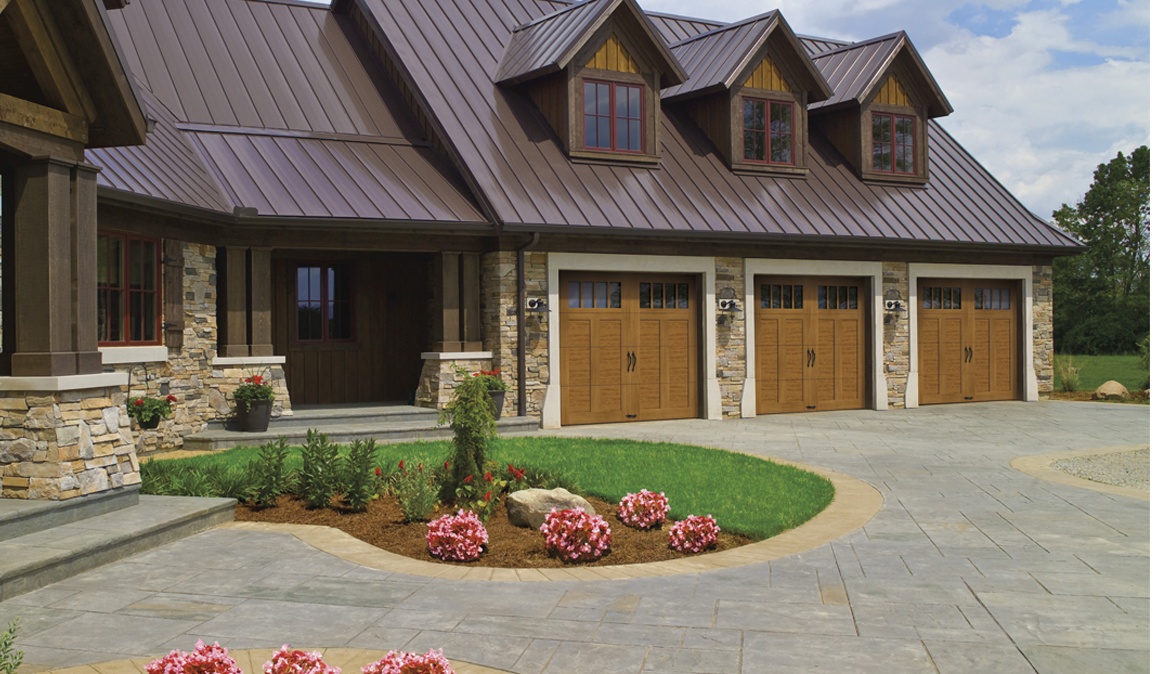

Insulated carriage house garage doors with faux wood and Ultra-Grain® steel.
An attractive and economical alternative to the Limited Edition Series, this door features a 2" Intellicore® polyurethane steel base with Ultra-Grain®, a durable, natural-looking, woodgrain paint finish. Stained Clear Cypress composite overlays are applied to the steel door surface to create beautiful carriage house designs.Contact us about this product
DOWNLOAD PRODUCT BROCHURE
by :
Overview
Love the durability of steel and the beautiful look of natural stained wood? Get the best of both worlds with CANYON RIDGE® collection ULTRA-GRAIN® series carriage house garage doors. Low-maintenance steel is covered with a composite overlay, molded from actual wood pieces for a natural look.
Construction Overview
- 4-layer steel carriage-house garage doors with a faux-wood finish.
- 2" Intellicore® polyurethane insulation with a thermal break. This garage door has an 18.4 R-value.
- Features Clopay’s Safe-T-Bracket®, a patented garage door safety feature.
- WINDCODE® reinforcement product available for high wind load applications.
Design Overview
- The Clear Cypress overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate.
- Utilizes Ultra-Grain® steel finish; a durable, natural looking woodgrain paint finish.
- Factory finish options are Walnut and Medium.
- Many glass options available including clear, frosted, seeded, rain, obscure and insulated.
- Attractive beveled edge clip-in window grilles are removable for easy cleaning.
- Comes complete with spade lift handles and step plates. Additional decorative hardware options available.
Calculated garage door section R-value is in accordance with DASMA TDS-163.
Door Designs
SERIES 1
DESIGN 11
DESIGN 12
DESIGN 13SERIES 2
DESIGN 21
DESIGN 22
DESIGN 23SERIES 3
DESIGN 31
DESIGN 32
DESIGN 33
DESIGN 34
DESIGN 35
DESIGN 36
DESIGN 37
DESIGN 38For more information regarding construction options per panel style, click here
Top Sections
SOLID TOP SECTIONS
TOP11
TOP12
TOP13-medium_cc_ugad221beb5719689a9c59ff05005f6e55.jpg)
ARCH1WINDOW DESIGNS
REC11
REC13
REC14
SQ23
ARCH4
SQ24
ARCH1
ARCH3DOUBLE TOP SECTIONS
ARC1A - SOLID (Double Door)
ARC1A - WINDOW (Double Door)
ARC3A - WINDOWS (Double Door)
ARC4A - WINDOWS (Double Door)Colors
ULTRA-GRAIN CYPRESS MEDIUM FINISH
ULTRA-GRAIN CYPRESS WALNUT FINISHFor more information regarding color availability, click here.
Hardware Designs
CLAVOS
DIAMOND CLAVOS
ROUND CLAVOSHANDLES
SPADE LIFT HANDLES(standard)
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES
FLEUR DE LIS HANDLES
DECORATIVE LIFT HANDLES
OLDE DOOR PULL HANDLES
GATE LATCH HANDLES
RING KNOCKERS WITH PLATE
LION'S HEAD DOOR KNOCKER
RING DOOR KNOCKERS.png)
ESCUTCHEON PLATE(S)
TWISTED "L" HANDLES
SLIDING BOLTHINGES
SPADE STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE
FLEUR DE LIS STRAP HINGE
MEDITERRANEAN STRAP HINGE
TUSCAN STRAP HINGEPLATES
SPADE STEP PLATE(standard)
SPEAR STEP PLATE
COLONIAL STEP PLATE
FLEUR DE LIS STEP PLATE- Clear Cypress faux wood composite overlay
- Steel with Ultra-Grain® paint finish
- 2" Intellicore® insulation with thermal break
- Steel
- Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
- High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
- Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
- Grilles are removable for easy cleaning.
- Patented Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
- Rust-Prevention System - Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.
Safe T-Bracket® Rust-Prevention System
Door sample shown in Medium Finish.
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability. (Click for details)
