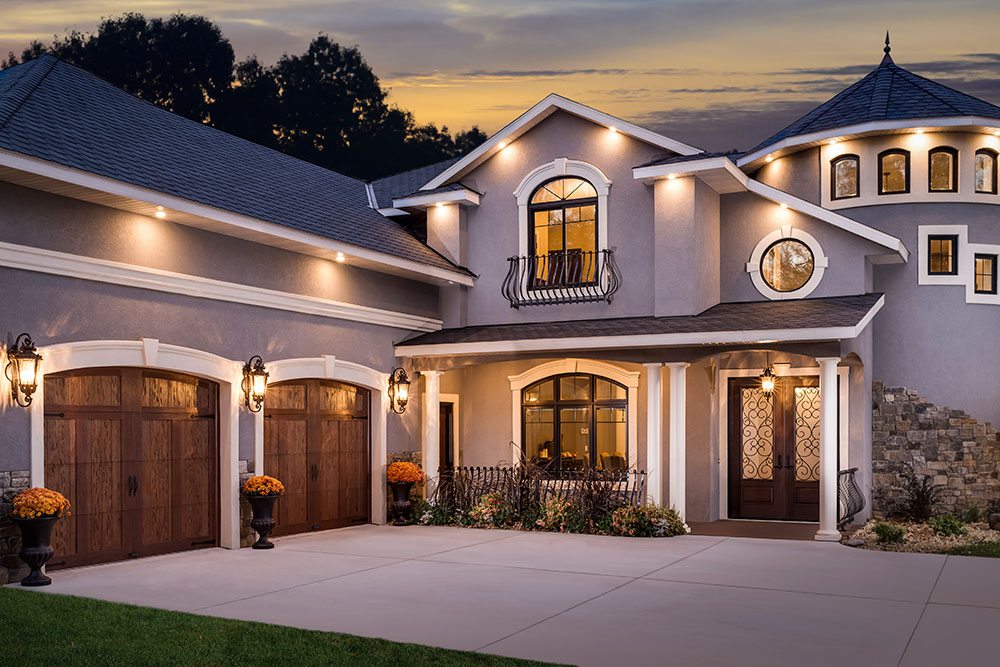

Insulated carriage house garage doors with faux wood overlays.
Beautiful and unique, Canyon Ridge® Limited Edition Series carriage house doors are constructed with an energy-efficient, Intellicore® insulated steel base and finished with faux wood composite cladding and overlays. The appearance is that of authentic swing-out doors but with the convenience of modern, upward operation.Contact us about this product
DOWNLOAD PRODUCT BROCHURE
by :
Overview
The CANYON RIDGE® collection LIMITED EDITION series combines the most popular elements of residential garage doors to create a unique, fashionable and functional garage door for your home. The time-tested, carriage-house design meets the modern strength of steel and composite, providing a warm authentic look with lower maintenance and high durability.
Construction Overview
- 5-layer steel carriage house garage doors with faux wood overlay.
- 2" Intellicore® polyurethane insulation with a thermal break. This garage door has a 20.4 R-value.
- Features Clopay’s patented Safe-T-Bracket ® safety feature.
- WINDCODE® reinforcement product available for high wind load applications.
Design Overview
- The cladding and overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate.
- Available composite cladding materials are Clear Cypress, Mahogany and Pecky Cypress. Available composite overlay materials are Clear Cypress and Mahogany.
- Many glass options, including clear, seeded, rain, obscure, frosted and insulated.
- Attractive beveled edge clip-in window grilles are removable for easy cleaning.
- Five factory finish color options available, including Walnut, White Wash and more.
- Comes complete with spade lift handles and step plates. Additional decorative hardware options available.
LIFTMASTER® ELITE SERIES™ Clopay recommends the LiftMaster® Elite Series opener for these garage doors.
Door Designs
SERIES 1
DESIGN 01
DESIGN 11
DESIGN 12
DESIGN 13SERIES 2
DESIGN 21
DESIGN 22
DESIGN 23SERIES 3
DESIGN 31
DESIGN 32
DESIGN 33
DESIGN 34
DESIGN 35
DESIGN 36
DESIGN 37
DESIGN 38For more information regarding construction options per panel style, click here
Top Sections
SERIES 1 & 2 SOLID
TOP11
TOP12
TOP13
ARCH1SERIES 1 & 2 WINDOW DESIGNS
REC11
REC13
REC14
SQ23
SQ24
ARCH1
ARCH3
ARCH4DOUBLE TOP SECTIONS
ARC1A - SOLID (Double Door)
ARC1A - WINDOW (Double Door)
ARC3A - WINDOWS (Double Door)
ARC4A - WINDOWS (Double Door)Colors
WALNUT FINISH
DARK FINISH
MEDIUM FINISH
WHITE WASH*
PRIMED*Available on select models. For more information regarding color availability, click here.
Hardware Designs
CLAVOS
DIAMOND CLAVOS
ROUND CLAVOSHANDLES
SPADE LIFT HANDLES(standard)
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES
FLEUR DE LIS HANDLES
DECORATIVE LIFT HANDLES
OLDE DOOR PULL HANDLES
GATE LATCH HANDLES
RING KNOCKERS WITH PLATE
LION'S HEAD DOOR KNOCKER
RING DOOR KNOCKERS.png)
ESCUTCHEON PLATE(S)
TWISTED "L" HANDLES
SLIDING BOLTHINGES
SPADE STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE
FLEUR DE LIS STRAP HINGE
MEDITERRANEAN STRAP HINGE
TUSCAN STRAP HINGEPLATES
SPADE STEP PLATE(standard)
SPEAR STEP PLATE
COLONIAL STEP PLATE
FLEUR DE LIS STEP PLATE- Faux wood composite overlay
- Faux wood composite cladding
- Steel
- 2" Intellicore® insulation with thermal break
- Steel
- Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
- High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
- Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
- Grilles are removable for easy cleaning.
- Patented Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
Safe-T Bracket®
Door sample shown in Walnut Finish.
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability. (Click for details)
