Modern Classic™
Now you can have the stylish appeal of a sleek and architecturally refined garage door, the Modern Classic™. The Modern Classic is a true stile-and-rail garage door made with an all-aluminum construction. Panel widths and heights can be configured to meet your requirements. Choose from glass or aluminum panels and painted, anodized or wood grain powder coated finishes. Regardless of your choices, the Modern Classic’s beauty will last a lifetime and is virtually maintenance free.Contact us about this product
General Information
- Frame: 2" thick extruded aluminum 6063-T5
- Finish: Standard, Class II clear Anodized
- Section Joint: Tongue and Groove Joints with compressible foam gasket between sections
- Top & Bottom Rail widths: 5-7/8" (5-1/2" on flat), Meeting Rail width combined: 4-3/16" (3-1/2" on flat)
- End Stile width: 5-7/8" (5-1/2" on flat), Center Stile width: 3-1/4" (2-1/2" on flat)
- Bottom weather seal: U-shape loop type vinyl
- Limited Lifetime Warranty
Standard Widths
8'-0", 9'-0", 10'-0", 12'-0",16'-0", 18'-0"
Standard Heights
7'-0", 8'-0", 9'-0", 10'-0", 12'-0"
MC43
MC44

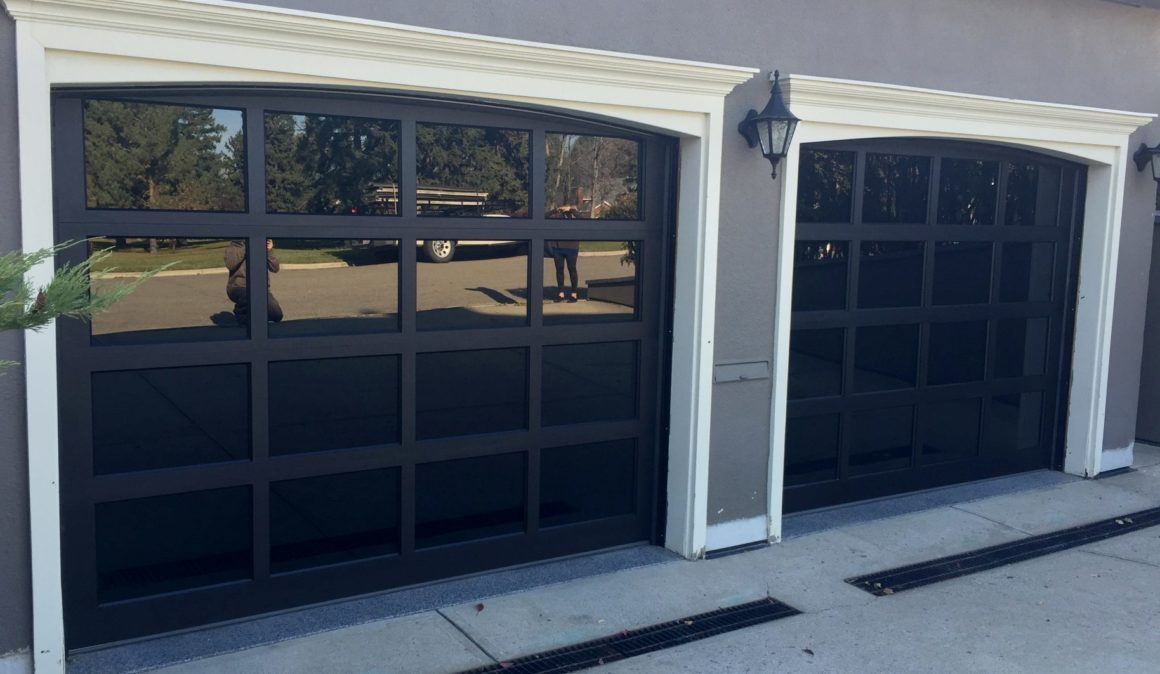

MC44
MC45
MC46
MC46
MC48
MC52
MC53
MC54
MC54
MC55
MC56
MC56
MC58
5/32" Solar Cool Bronze
1/4" Clear
1/4" Mirrorpane
1/4" Plexiglass
1/4" Polycarbonate
1/8" Bronze
1/8" Clear
1/8" Gluechip
1/8" Gray
1/8" Greylite #31
1/8" Mistlite
1/8" P516 Obscure
1/8" Acrylic
1/8" Polycarbonate
1/8" Satin Etch
1/2" Insulated Clear
7/32" White Diffused Laminated
.050” Thick, Clear Anodized Aluminum
.25" Thick, White Corrugated Aluminum
.040” Thick, Mill Finish Stucco Embossed Aluminum
1” Thick, Polystyrene Insulated White Aluminum
.0625” Thick, 1”x.5” Diamond, .25” Stagger, 63% OA Expanded Mill Finish aluminum
.0625” Thick, .5” Dia. Holes, .6875” Stagger, 48% OA Perforated Mill finish Aluminum
.125” Thick, .25” Dia. Holes, .375” Stagger, 40% OA Perforated Mill finish Aluminum
.0625” Thick, .0625” Dia. Holes, .09375” Stagger, 41% OA Perforated Mill finish Aluminum
Clear Anodized
Dark Bronze Anodized
Black Anodized
Light Ash
Dark Ash
Light Cherry
Dark Cherry
Light Fir
Dark Fir
Mahogany
Dark Walnut
Recommended Options
Extended Life Package
- 25,000 Cycle Torsion Springs
- Heavy Gauge Hinges
- Heavy Duty Cables
Powder Coated Hardware
Other Options
- Single Pane and Insulated Glass Options
- Low Clearance, High Lift, or Vertical Lift Hardware
- White Nylon Ball Bearing Rollers
- Angle Mounted Track
- Double End Hinges and Long Stem Rollers
- 25,000, 50,000 and 100,000 Cycle Torsion Springs
