7100 Series

T1-11 4" Plywood

T1-11 8" Plywood

MDO

Smooth Plywood

Rough Sawn Plywood

Hemlock

Western Red Cedar

Knotty Cedar

Mahogany

Garage door panels are not primed. Models 7101 - 7104 come with a paint grade finish that can be painted to match your home for an exact custom look. Model 7105 comes with a hemlock raised panel surface that can be stained or painted and offers an option to upgrade to Western Red Cedar.

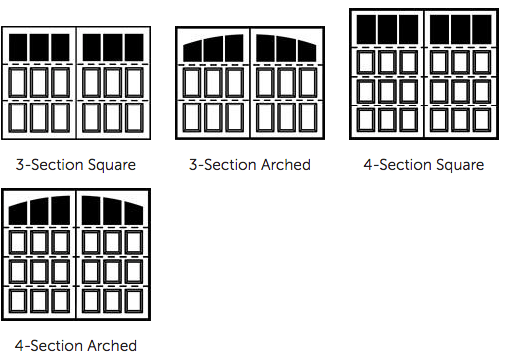

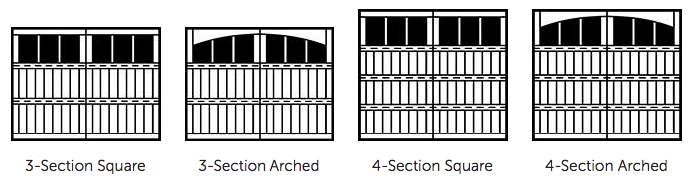

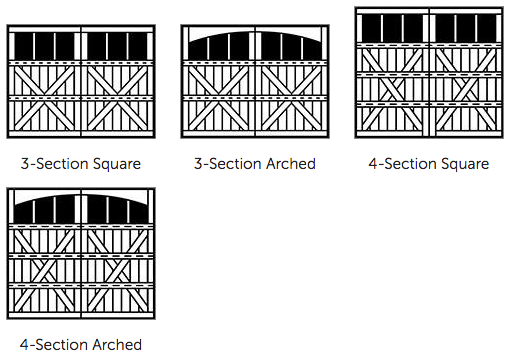

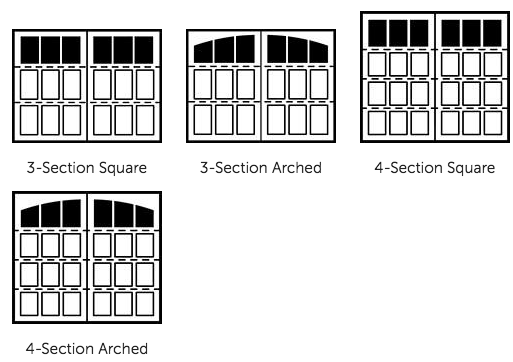

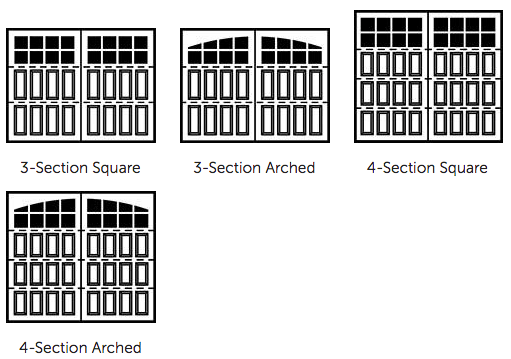

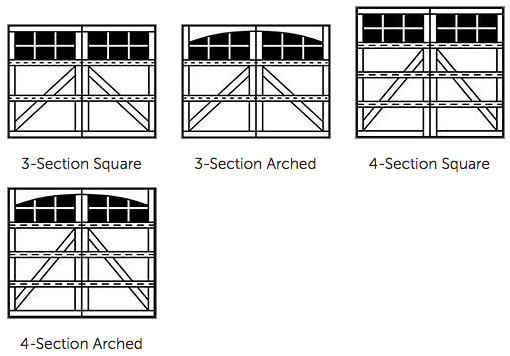

Square - True Vertical Divided

Square - True Cross Divided

Arched - True Vertical Divided

Arched - True Cross Divided

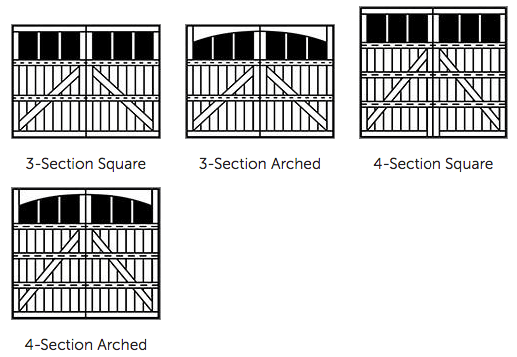

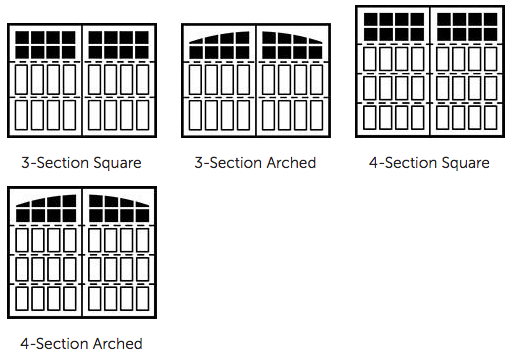

Window patterns are shown for a typical single-car door. Spacing of windows may change depending on door size. Not all windows are available in all sizes.

Double car windows are named by the number of window panes in the door. Example: 12 Lite Square for a single car door becomes 24 Lite Square for a double car door. For arched windows on double car doors, you have the option of selecting a single arch or double arch.

Arch Options for Double Car Windows

Glass Options

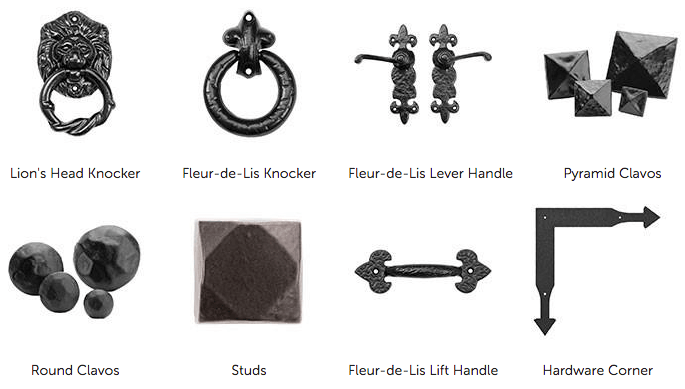

Decorative Hardware Kits

Hammered Knockers Lift Handles Premium Hardware & Accent Pieces

Decorative hardware kits come with four hinges and two pull handles. Double car doors come with two sets of decorative hardware kits. Additional accent pieces are available to match or complement each collection. Pull handle fit in center style is dependent upon design and size of the door.

Construction

1. Rail

2. Stile

3. Glazing

4. Plywood

5. Panel Insert

Our 7100 Series is made with paint or stain grade wood with optional insulation (R-value* up to 7.6). These doors are built with 1 5/8” thick rail and stile construction with panel inserts.

*Wayne Dalton uses a calculated door section R-value for our insulated doors.
