Versatile and Strong Light Commercial Roll Up Sheet Door
Our DS Series Roll-Up Sheet doors are designed to be versatile, durable and easy to operate.Contact us about this product
DOWNLOAD PRODUCT BROCHURE
Our DS Series Roll-Up Sheet doors are designed to be versatile, durable and easy to operate. Each door in the DS Series is constructed of 26-gauge, galvanized steel and features automatic door stops, a steel axle to support the door curtain and counterbalance system and oil-tempered steel springs for smooth cycle performance. With a variety of colors, options and sizes to choose from, these doors will fit almost any commercial application.

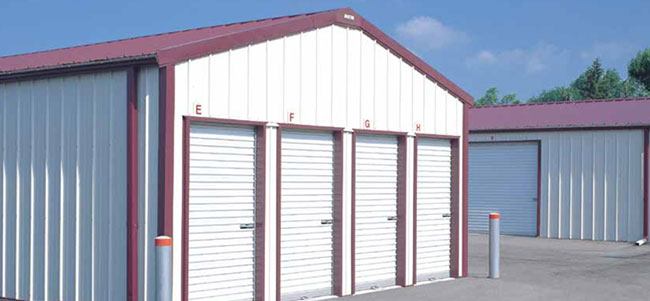

Model DS-100 is perfect for light commercial applications with openings up to 10’ wide by 10’ high, such as mini-storage buildings, loading docks, and service buildings. 18-gauge guides allow for easy installation to masonry or steel with no special preparation or overhead tracks needed.
Key Product Features
- Max Width: 10’
- Max Height: 10’
- 26-gauge galvanized steel
- Manual lift operation
Product Information
- Corrugated door curtain, available in round or square profile, is hot-dipped galvanized 26-gauge steel, primed then finished with high gloss, silicone polyester paint.
- Polypropylene anti-wear strips come factory-installed as continuous guides for sliding metal parts, providing quieter operation and longer service life.
- Rigid support bracket with bearings hold constant door tension, and allow easy adjustments.
- Bottom bar assembly includes heavy-duty steel angle, extruded aluminum bottom bar and replaceable tubular-type vinyl astragal.
- Slide-bolt assemblies fabricated of heavy-duty steel lock the closed door from inside at the bottom corners (not shown; door has optional mini curtain lock.) For added security, both slide bolts accept padlocks.
- Roll-up door guides are 18-gauge galvanized steel, 2" wide and install to masonry, steel or wood construction equally well.
- Automatic door stops prevent door from rolling up past the header.
- Oil-tempered steel spring is engineered to counterbalance different door sizes and weights for smooth, easy operation.
- Heavy-duty steel axle supports door curtain and counterbalance system.
Options & Accessories
- Wind load available up to ±34 psf on doors 10’ maximum in width
- Insulation featuring two layers of aluminum mylar film laminated to two layers of heavy-duty polyethylene air-bubble material. An R-value* of 4 helps control heat gain/loss. Includes flexible vinyl top and side draft stops as weather seals between the door and the building.
- Locks: slide bolt or curtain
*Wayne Dalton uses a calculated door section R-value for insulated doors.
Color Options
The Teal, Maroon, and Purple colors have a 10-year warranty against chalk and fade. All other door colors have a 20-year warranty against chalk and fade.
