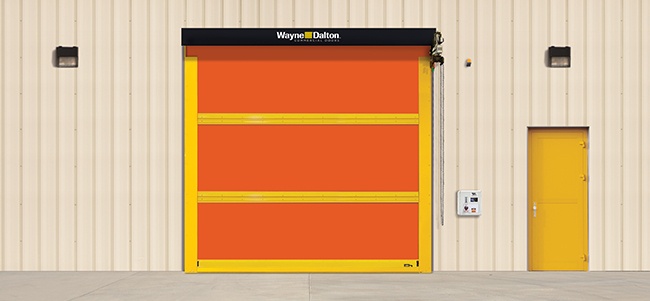

Exterior Heavy-Duty High Speed Fabric Door
The heaviest fabric door in the ADV-X series, Model 884 ADV-X is designed for exterior applications where weather elements may be extreme.Contact us about this product
- Max Width: 16’
- Max Height: 15’
- Exterior applications
- Material: 3 layers of PVC-coated polyester with 2 layers of polyester weave
- Wind resistance up to ±22 psf; operational pressure up to ±5 psf
- Opening speed: up to 55” per second
- Closing speed: up to 40” per second
- Breakaway self-reset
- Operator: direct-drive motor and gearbox system
- Control: variable frequency drive
- Wireless reversing edge
- Plug and play wiring
Design Features
High Cycle Design
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start/stop
Heavy-duty Guide Construction
- Door guides are constructed of 0.188" thick high-strength steel
Articulating Strut Design
- Patent-pending articulating roller wind strut reduces noise and allows for quick panel replacement while reducing curtain deflection under pressure and also allows door to operate under wind load
Bottom Windlock
- A buttom windlock provides additional static pressure resistance.
Low Maintenance
- Breakaway design with impact detection and push button self repair; plug and play wiring
Applications
- Manufacturing / Heavy Manufacturing
- Warehouse / Distribution
- Large Opening
- Mining
- Parking Garages
- Auto / Transit
Fabric
Red
Blue
Gray
Orange
Standard color for guides, brackets, struts and bottom bar is yellow.
RAL Powder Coat
Approximately 200 optional RAL powder coat colors are available for guides, brackets, struts and bottom bar.
Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).
- 20" high windows spaced evenly across the width of the door
- Power availability: 230V AC 3PH, 460V AC 3PH, 575V AC 3PH
- Multiple actuation options - push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
- Signaling devices - red/green LED warning light, horn/strobe combination, rotating warning light
