Features

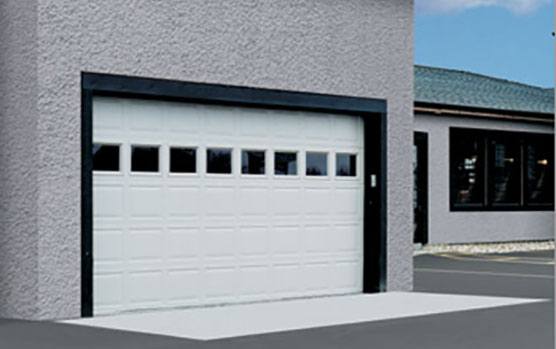

Designed for peak performance, StyleForm OPTIMA's rugged, raised-panel, two-sided steel door is the perfect combination of beauty, strength and thermal efficiency. Available in the widest variety of colors, this steel garage door features an authentic woodgrain texture and a clean interior appearance to meet any design scheme.Contact us about this product
DOWNLOAD PRODUCT BROCHURE
Type | Commercial Sectional Garage Doors | |
Model | StyleForm OPTIMA | |
Size | 18' x 16' Max | |
Operation | Manual, Motor or Hand Chain | |
IECC Thermal Performance | N/A | |
Construction | 3-Layer Sandwich | |
Material | Steel | |
Surface Texture | Woodgrain Exterior/Interior | |
Section Joint | Tongue-Groove | |
Section Thickness | 2" | |
Gauge | Steel; Exterior: 26-Gauge; Interior: 26-Gauge | |
Stiles | 18-Gauge | |
Insulation | Expanded Polystyrene (R-value = 10.25) | |
Seals | Thermal Break, Header Seal, Bottom Seal (3", 4" EPDM, or 3" Yellow) | |
Trussing | Wind Load: 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard); Material: U-bar (18-Gauge or 20-Gauge) | |
Panel Configuration | NA | |
Color | White, Almond, Claytone, Beige, Desert Tan, Brown (Kynar), Frost White, Frost White (Kynar), Sepia (Kynar), Beige (Kynar), Raynor's OptiFinish™ with more than 1800 Sherwin-Williams colors | |
Windows | Rectangular (Residential styles available); Glass: 1/8" Insulated DSB | |
Type | Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour | |
Finish | Galvanized or Optional White Powdercoat | |
Size | 2" or 3" | |
Gauge | 12, 13, or 16-Gauge | |
Type | Torsion Spring | |
Springs | Spring Inner Diameter: 2-1/4", 3-1/2" or 5-1/2"; Duplex or High Cycle (25K, 50K, 100K); Optional Black Powdercoat | |
Shafts | Tube or Solid (D-Shaft, 1" Keyed) | |
Hinges | 11, 13, 14-Gauge or Hybrid | |
Rollers | Standard (2" or 3"), Heavy Duty (2" or 3"), or Nylon (2" or 3") | |
Finish | Galvanized or Optional White Powdercoat | |
Lock | Interior Slide Lock or Exterior Lock Bars | |
Seal | Climate Seal, Jamb Seal | |
Hanger Angle | 11, 13, 16-Gauge Galvanized or 13-Gauge White Powdercoated | |
Pedestrian Door | N/A | |
Optional Wind Loading | Certified Wind Load Available | |
Posts | N/A | |
Section Warranty | 10-Year | |
Hardware Warranty | 1-Year | |
Spring Warranty | 1-Year |
Almond |
ClayTone |
BronzeTone |
The swatches shown may vary from actual color. Contact your authorized Raynor dealer for more information regarding color selection. |
Garage Doors may be upgraded to colors featuring the Kynar paint process, which provides extended UV protection against fading: Frost White (Kynar), Sepia (Kynar), Beige (Kynar)
Specifications | Word Document | PDF document |
Raynor Quick Spec | Microsoft Word Document | PDF Document |
CSI Master Format | Microsoft Word Document | PDF Document |
Standard Drawings | DWG Drawing | PDF document |
2-inch Track/Bracket-Mounted | ||
Normal Headroom | DWG Drawing | PDF Document |
Lift Clearance | DWG Drawing | PDF Document |
Vertical Lift | DWG Drawing | PDF Document |
Low Headroom Front-Mount | DWG Drawing | PDF Document |
Low Headroom Rear-Mount | DWG Drawing | PDF Document |
2-inch Track/Angle-Mounted | ||
Normal Headroom | DWG Drawing | PDF Document |
Lift Clearance | DWG Drawing | PDF Document |
Vertical Lift | DWG Drawing | PDF Document |
Low Headroom Front-Mount | DWG Drawing | PDF Document |
Low Headroom Rear-Mount | DWG Drawing | PDF Document |
3-inch Track/Angle-Mounted | ||
Normal Headroom | DWG Drawing | PDF Document |
Lift Clearance | DWG Drawing | PDF Document |
Vertical Lift | DWG Drawing | PDF Document |
Low Headroom Front-Mount | DWG Drawing | PDF Document |
Low Headroom Rear-Mount | DWG Drawing | PDF Document |
Normal Headroom |
Lift Clearance |
Low Headroom (Front Mount) |
Low Headroom (Rear Mount) |
Vertical Lift |
Incline |
Vertical Lift A-Type |
Door Width | Number of Raised Panels | Door Height | Number of Sections | |
---|---|---|---|---|
7' 11" - 11' 0" | 4 | 6' 4" - 7' 11" | 4 | |
11' 1" - 11' 8" | 5 | 8' 0" - 9' 9" | 5 | |
11' 9" - 12' 0" | 6 | 9' 10" - 11' 3" | 6 | |
12' 11" - 13' 2" | 5 | 11' 4" - 13' 0" | 7 | |
13' 3" - 15' 5" | 6 | 13' 1" - 14' 0" | 8 | |
15' 6" - 18' 0" | 8 |
DOOR SECTIONS
Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust-through for ten (10) years from date of delivery to the original purchaser. Raynor also warrants the door sections against delamination of the polystyrene insulation from the steel skins for ten (10) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
HARDWARE and SPRINGS
Raynor warrants all hardware and spring components against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
ACCUFINISH® and ARMORFINISH®
Doors equipped with AccuFinish or ArmorFinish carry a warranty against defects in material and workmanship against rust-through and delamination for three (3) years from date of delivery to the original purchaser. This warranty includes coverage within two (2) miles of salt water coastal areas. After the AccuFinish or ArmorFinish warranty expires, the normal warranty applies.
ARMORBRITE™
Doors equipped with AmorBrite powdercoat carry a warranty against cracking or peeling (losing adhesion) for three (3) years from date of delivery to the original purchaser.
OPTIFINISH™ (post paint)
Raynor warrants the OptiFinish (exterior only) against cracking or peeling (losing adhesion) for one (1) year from date of delivery to the original purchaser. Cracking or peeling caused by dents or scratches is not covered. Fading is not covered by this warranty.
WARRANTY LIMITATIONS and EXCLUSIONS
Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an authorized Raynor dealer.
This warranty extends only to the original purchaser, provided the door is installed in his/her place of business. This warranty is not transferable.
This warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this warranty. Field applied paint failure is not covered by this warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.
This warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this warranty.
Raynor shall not be liable for any consequential or incidental damages.
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANT OF MERCHANTABILITY, ARE HEREBY EXPRESSLY EXCLUDED.
Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.
Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.
This warranty gives you specific legal rights. You may also have other rights, which may vary from state to state.
