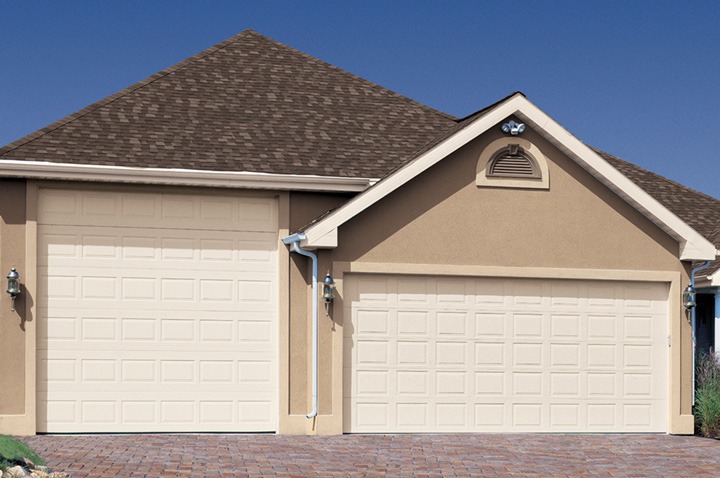

Sectional Raised and Recessed Panel Garage Doors
A perfect commercial-sized companion for the residential Aspen AP200 doors, this full 2", R-18 door will brighten up the appearance of any building, inside and out. Available in a wide range of colors, the AP200C is your best choice for an over-sized, classic residential appearance.Contact us about this product
DOWNLOAD PRODUCT BROCHURE
Features
When your building's facade needs a classic raised panel design, choose Commercial Aspen doors. With style choices like mixed panel designs and Raynor's proprietary WeatherLock™ section joint technology, Commercial Aspen doors offer the aesthetic options of a residential door, combined with the durability and sizes of a commercial door. The Commercial Aspen models match the Aspen Series residential doors.
WeatherLock™ Section Joint
Raynor's proprietary WeatherLock™ section joint has continuous thermal break and air seal between steel sections. This modified tongue-in-groove joint provides exceptional strength, while effectively locking out both air and water infiltration into the garage's interior.
Neufoam™ Polyurethane Insulation
State-of-the-art Neufoam polyurethane insulation is blown between the door's steel skins and expands to fill 100% of the door's interior space. This delivers the industry's best insulation efficiency and provides for maximum structural integrity and strength. Provides an 18 R-value.
Hot-dipped Galvanized Steel Track
All Raynor custom-fit tracks are constructed from heavy-gauge steel for maximum stability and long life. Made specifically to order, our track is adjustable so your door always fits perfectly against your door opening, preventing energy loss.
Optional EnduraCote™ Hardware Package
Raynor's EnduraCote™ system includes white powder coated track, end stiles and hinges, black powder coated extended life springs and torsion bar.
2" Thick Door Sections & Neufoam Polyurethane Insulation
Raynor Commercial Aspen AP200C doors feature 2" thick door sections made from: (1) baked-on finish, (2) epoxy primer, (3) galvanized layer, (4) high-strength steel, (5) Neufoam polyurethane insulation, ensuring 100% of the section's interior is filled with energy saving polyurethane insulation for an unsurpassed 18.0 R-value and (6) high-strength steel.
Type | Commercial Sectional Garage Doors | |
Model | Aspen AP200C | |
Size | 24' x 16' Max | |
Operation | Manual, Motor or Hand Chain | |
IECC Thermal Performance | N/A | |
Construction | 3-Layer Sandwich | |
Material | Steel | |
Surface Texture | Woodgrain Exterior/Stucco Interior | |
Section Joint | WeatherLock Tongue-in-Groove | |
Section Thickness | 2" | |
Gauge | Steel; 26-gauge | |
Stiles | 16- or 20-Gauge | |
Insulation | HCFC & CFC-11 Free Neufoam Polyurethane Foam (R-value = 18.0) | |
Seals | Thermal Break, Full Section Joint Seal, Bottom Seal | |
Trussing | Wind Load: 12 P.S.F. Tested/8 P.S.F. Design Load (standard); Material: U-bar 20-Gauge | |
Panel Configuration | Raised Colonial, Raised Ranch, Recessed Grooved Colonial, Recessed Grooved Ranch, Mixed Panel, Carriage House Spacing, Flush, Plank | |
Color | White, Almond, Black, Bronze, Brown, Charcoal, Desert Tan, Sandstone, Walnut Woodgrain, Medium Oak Woodgrain; Raynor's OptiFinish with more than 1,800 Sherwin-Williams colors | |
Windows | Clear and Obscur Colonial and Ranch; Optional Snap-In Styles | |
Type | Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour | |
Finish | Galvanized or Optional White PowderCoat | |
Size | 2" or Optional 3" | |
Gauge | 12, 13, or 16-Gauge | |
Type | Torsion Spring | |
Springs | Optional High Cycle (25K, 50K, 100K); Optional Black PowderCoat | |
Shafts | Tube (13 gauge) or Solid (D-Shaft, 1" Keyed) | |
Hinges | 13-Gauge | |
Rollers | Standard Nylon (2" or 3") or Heavy Duty (2" or 3") | |
Finish | Galvanized or Optional White PowderCoat | |
Lock | Optional Interior Slide Lock, Exterior Keyed Lock with Chain Latch or Lock Bars | |
Seal | Optional Climate Seal and Jamb Seal | |
Hanger Angle | 11, 13, 16-Gauge Galvanized or 13-Gauge White PowderCoated | |
Pedestrian Door | N/A | |
Optional Wind Load Systems | N/A | |
Posts | N/A | |
Section Warranty | 10-Year | |
Hardware Warranty | 1-Year | |
Spring Warranty | 1-Year |
White, Almond, Black, Bronze, Brown, Desert Tan, Sandstone, Charcoal
Specifications | Word Document | PDF document |
Raynor Quick Spec | Microsoft Word Document | PDF Document |
CSI Master Format | Microsoft Word Document | PDF Document |
Standard Drawings | DWG Drawing | PDF document |
2-inch Track/Bracket-Mounted | ||
Normal Headroom | DWG Drawing | PDF Document |
Lift Clearance | DWG Drawing | PDF Document |
Vertical Lift | DWG Drawing | PDF Document |
Low Headroom Front-Mount | DWG Drawing | PDF Document |
Low Headroom Rear-Mount | DWG Drawing | PDF Document |
2-inch Track/Angle-Mounted | ||
Normal Headroom | DWG Drawing | PDF Document |
Lift Clearance | DWG Drawing | PDF Document |
Vertical Lift | DWG Drawing | PDF Document |
Low Headroom Front-Mount | DWG Drawing | PDF Document |
Low Headroom Rear-Mount | DWG Drawing | PDF Document |
3-inch Track/Angle-Mounted | ||
Normal Headroom | DWG Drawing | PDF Document |
Lift Clearance | DWG Drawing | PDF Document |
Vertical Lift | DWG Drawing | PDF Document |
Low Headroom Front-Mount | DWG Drawing | PDF Document |
Low Headroom Rear-Mount | DWG Drawing | PDF Document |
Normal Headroom |
Lift Clearance |
Low Headroom (Front Mount) |
Low Headroom (Rear Mount) |
Vertical Lift |
Incline |
Vertical Lift A-Type |
Commercial Aspen Warranty
Commercial Garage Door Limited Warranty
Door Sections
Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust-through for ten (10) years from date of delivery to the original purchaser. Raynor also warrants the door sections against delamination of the polyurethane foam insulation from the steel skins for ten (10) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
Hardware:
Raynor warrants all hardware against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
Springs:
Raynor warrants springs against defects in material and workmanship for one (1) year from date of delivery. The limited warranty for special high-cycle springs is prorated by percentage of cycle use, and must be determined by the use of a non-resettable cycle counter.
OptiFinish™ (post paint):
Raynor warrants the OptiFinish (exterior only) against cracking or peeling (losing adhesion) for one (1) year from date of delivery to the original purchaser. Cracking or peeling caused by dents or scratches is not covered. Fading is not covered by this warranty.
WARRANTY LIMITATIONS and EXCLUSIONS
Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an authorized Raynor dealer.
This warranty extends only to the original purchaser, provided the door is installed in his/her place of residence. This warranty is not transferable. This warranty applies to residential property only and is not valid on commercial applications or commercial use from a private residence.
This warranty does not apply to automated parking control systems for multiple-tenant parking applications.
This warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this warranty. Field applied paint failure is not covered by this warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.
This warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this warranty.
Raynor shall not be liable for any consequential or incidental damages.
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, ARE HEREBY EXPRESSLY EXCLUDED.
Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.
Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.
This warranty gives you specific legal rights. You may also have other rights, which may vary from state to state.
