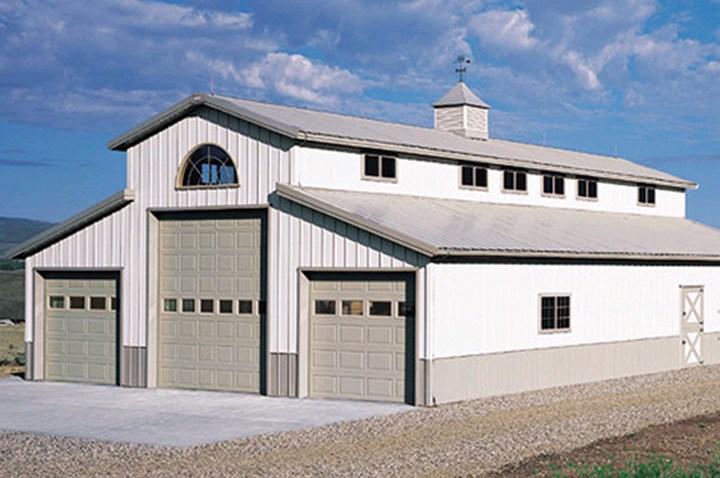

Sectional Raised and Recessed Panel Garage Doors

This 1-3/8", 13 R-value is perfect for the RV or boat storage garage and matches the raised colonial, raised ranch, recessed grooved colonial, recessed grooved ranch, mixed panel, plank or flush look of the residential Aspen doors. Available in 8 colors or two woodgrain finishes.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

When your building's facade needs a classic raised panel design, choose Commercial Aspen doors. With style choices like mixed panel designs and Raynor's proprietary WeatherLock™ section joint technology, Commercial Aspen doors offer the aesthetic options of a residential door, combined with the durability and sizes of a commercial door. The Commercial Aspen models match the Aspen Series residential doors.

WeatherLock section joint WeatherLock™ Section Joint
Raynor's proprietary WeatherLock™ section joint has continuous thermal break and air seal between steel sections. This modified tongue-in-groove joint provides exceptional strength, while effectively locking out both air and water infiltration into the garage's interior.



Neufoam polyurethane insulation Neufoam™ Polyurethane Insulation
State-of-the-art Neufoam polyurethane insulation is blown between the door's steel skins and expands to fill 100% of the door's interior space. This delivers the industry's best insulation efficiency and provides for maximum structural integrity and strength. Provides an 13.08 R-value.



Decorative Windows Hot-dipped Galvanized Steel Track
All Raynor custom-fit tracks are constructed from heavy-gauge steel for maximum stability and long life. Made specifically to order, our track is adjustable so your door always fits perfectly against your door opening, preventing energy loss.



Raynor EnduraCote Hardware Package Optional EnduraCote™ Hardware Package
Raynor's EnduraCote™ system includes white powder coated track, end stiles and hinges, black powder coated extended life springs and torsion bar.

Door
Type   Commercial Sectional Garage Doors
Model   Aspen AP138C
Size   24' x 16' Max
Operation   Manual, Motor or Hand Chain
IECC Thermal Performance   N/A
Sections
Construction   3-Layer Sandwich
Material   Steel
Surface Texture   Woodgrain Exterior/Stucco Interior
Section Joint   WeatherLock Tongue-in-Groove
Section Thickness   1-3/8"
Gauge   Steel; 26-gauge
Stiles   20-Gauge
Insulation   HCFC & CFC-11 Free Neufoam Polyurethane Foam (R-value = 13.0)
Seals   Thermal Break, Header Seal, Section Joint Seal, Bottom Seal (3", 4" EPDM, or 3" Yellow)
Trussing   Wind Load: 12 P.S.F. Tested/8 P.S.F. Design Load (standard); Material: U-bar 20-Gauge
Panel Configuration   Raised Colonial, Raised Ranch, Recessed Grooved Colonial, Recessed Grooved Ranch, Mixed Panel, Carriage House Spacing, Flush, Plank
Color   White, Almond, Black, Bronze, Brown, Charcoal, Desert Tan, Sandstone, Walnut Woodgrain, Medium Oak Woodgrain; Raynor's OptiFinish with more than 1,800 Sherwin-Williams colors
Windows   Clear and Obscur Colonial and Ranch; Optional Snap-In Styles
Track
Type   Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour
Finish   Galvanized or Optional White PowderCoat
Size   2" or Optional 3"
Gauge   12, 13, or 16-Gauge
Counterbalance System
Type   Torsion Spring
Springs   Optional High Cycle (25K, 50K, 100K); Optional Black PowderCoat
Shafts   Tube (13 gauge) or Solid (D-Shaft, 1" Keyed)
Hardware/Accessories
Hinges   13-Gauge
Rollers   Standard Nylon (2" or 3") or Heavy Duty (2" or 3")
Finish   Galvanized or Optional White PowderCoat
Lock   Optional Interior Slide Lock, Exterior Keyed Lock with Chain Latch or Lock Bars
Seal   Optional Climate Seal and Jamb Seal
Hanger Angle   11, 13, 16-Gauge Galvanized or 13-Gauge White PowderCoated
Pedestrian Door   N/A
Optional Wind Load Systems   N/A
Posts   N/A
Limited Warranty *
Section Warranty   10-Year
Hardware Warranty   1-Year
Spring Warranty   1-Year
Not only do Raynor Commercial Aspen™ steel garage doors offer you more design choices than any other manufacturer, we offer a variety of custom door sizes to precisely fit your commercial application.

White, Almond, Black, Bronze, Brown, Desert Tan, Sandstone, Charcoal

Commercial Aspen Warranty

Commercial Garage Door Limited Warranty

Door Sections

Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust-through for ten (10) years from date of delivery to the original purchaser. Raynor also warrants the door sections against delamination of the polyurethane foam insulation from the steel skins for ten (10) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

Hardware:

Raynor warrants all hardware against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

Springs:

Raynor warrants springs against defects in material and workmanship for one (1) year from date of delivery. The limited warranty for special high-cycle springs is prorated by percentage of cycle use, and must be determined by the use of a non-resettable cycle counter.

OptiFinish™ (post paint):

Raynor warrants the OptiFinish (exterior only) against cracking or peeling (losing adhesion) for one (1) year from date of delivery to the original purchaser. Cracking or peeling caused by dents or scratches is not covered. Fading is not covered by this warranty.

WARRANTY LIMITATIONS and EXCLUSIONS

Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an authorized Raynor dealer.

This warranty extends only to the original purchaser, provided the door is installed in his/her place of residence. This warranty is not transferable. This warranty applies to residential property only and is not valid on commercial applications or commercial use from a private residence.

This warranty does not apply to automated parking control systems for multiple-tenant parking applications.

This warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this warranty. Field applied paint failure is not covered by this warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this warranty.

Raynor shall not be liable for any consequential or incidental damages.

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, ARE HEREBY EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This warranty gives you specific legal rights. You may also have other rights, which may vary from state to state.
