MODELS 150C, 157C, 160C

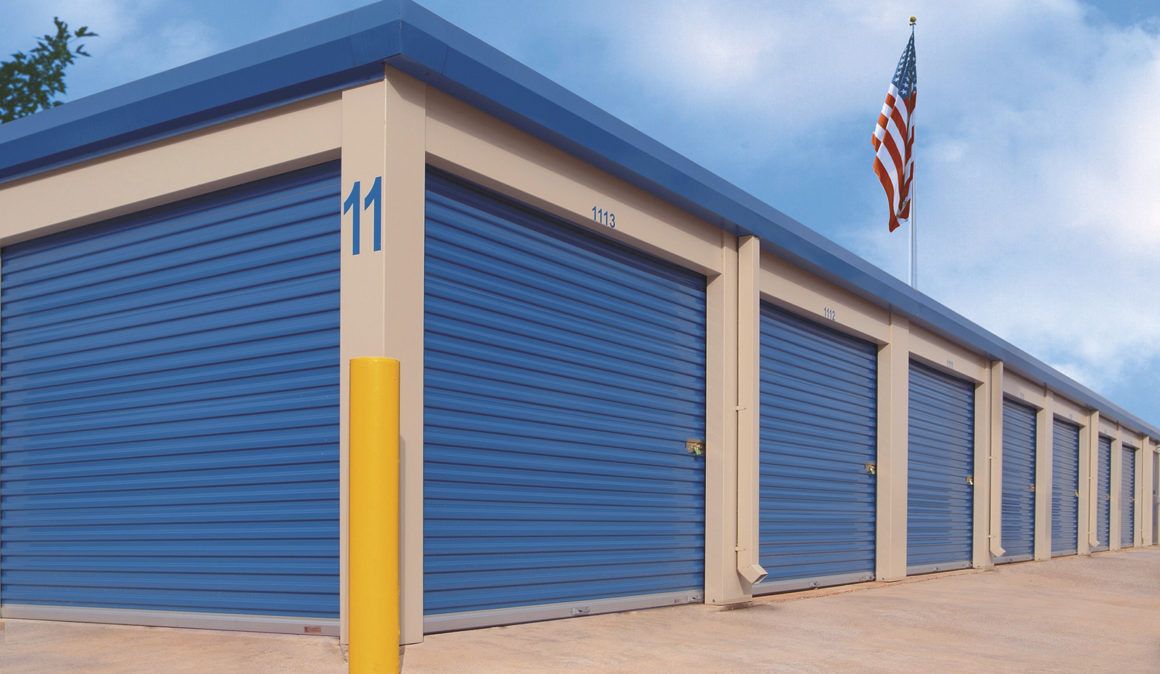

Roll-up sheet doors are ideal for mini warehouse and storage facilities. Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides.Contact us about this product
DOWNLOAD PRODUCT BROCHURE
by :
| 160C | Heavy Duty | 12" Coil |
| 157C | Medium Duty | 12" Coil |
| 150C | Light Duty | 9" Coil |
Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides. Sheet coils around a spring loaded shaft above the header as the door is opened. Designed with ease of installation in mind.
| 160C | Heavy Duty | 12" Coil |
| 157C | Medium Duty | 12" Coil |
| 150C | Light Duty | 9" Coil |
- 26 gauge hot-dipped galvanized steel curtain with a baked-on silicone polyester top coat.
- Roll-formed guides of hot-dipped galvanized steel (18 gauge 150C, 16 gauge 157C and 12 gauge 160C).
- Self-lubricating wearstrips on curtain prevent metal-to-metal contact and muffle door noise.
- Curtains are prepainted inside and out to inhibit rust. Hot-dipped, galvanized steel is painted with primer and given a tough oven-baked silicone polyester top coat, to provide the most rust-resistant steel door available.
- Heavy-duty bottom bar withstands the external elements.
- Full bulb-type bottom weatherstrip ensures proper fit along irregular floors.
BAKED-ON SILICONE POLYESTER PAINT
STANDARD COLORS
*Colors shown may not reflect true steel color.
Use for reference only. Premium colors are an upcharge.
| Models | CAD | BIM | Shop Drawing | Specification | Literature(PDF) | Instruction Manual(PDF) | Warranty |
|---|---|---|---|---|---|---|---|
| 26 Gauge Steel Curtain | |||||||
| 150C |  |
 |
CMDC-ROLLUPSS-10.pdf | Installation_150C.pdf | |
||
| 157C | |
|
CMDC-ROLLUPSS-10.pdf | Installation_157C.pdf | |
||
| 160C | |
|
CMDC-ROLLUPSS-10.pdf | Installation_160CW6.pdf | |
||
