Architectural Series | Commercial

Aluminum Full View Doors 900 series

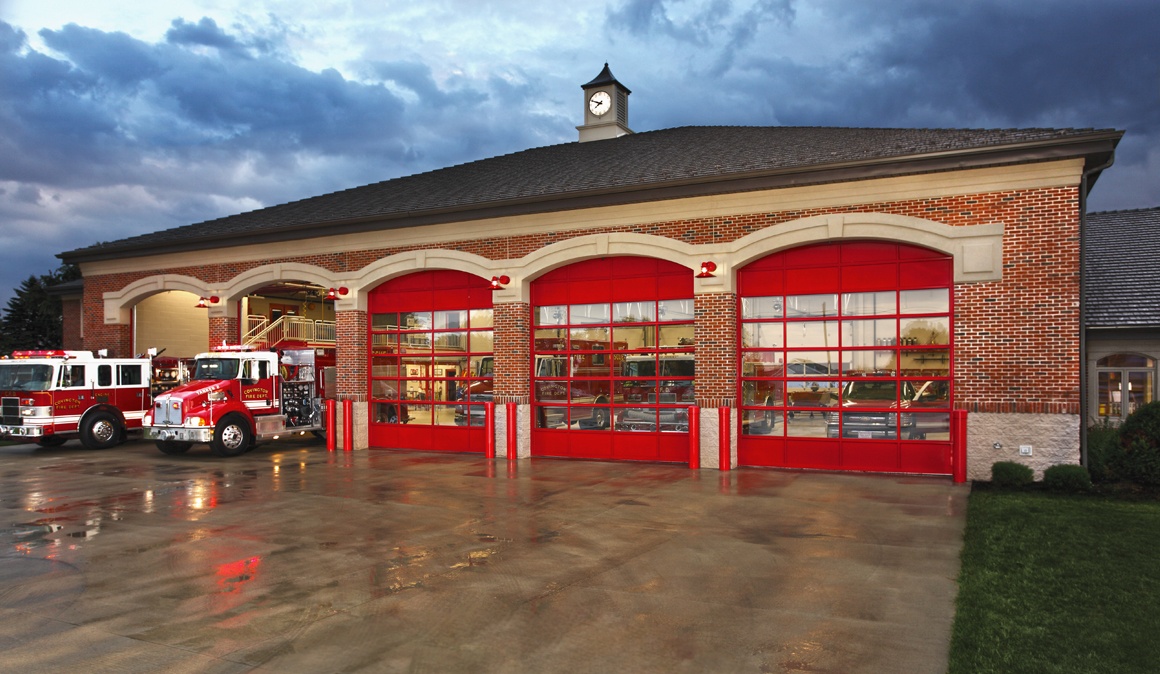

The perfect choice for architectural applications that require open visibility, bright light and a modern, industrial design. The Full-View aluminum series doors can be used as a standard exterior garage door, as an interior "partition" or even as a versatile patio door to seamlessly merge indoor and outdoor spaces. Well-suited for restaurants, service stations, car dealerships, fire stations and trendy commercial retail and office spaces with a distinct architectural appearance.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

Email | Print

by :

Models
Options
Features and Benefits
Specs/Drawing
Brochures
Springs and Hardware

Models

Model	Section Thickness	Panel Spacing	Max Width**	Max Height
902	2"	44" on center, end panels vary	24'2"	20'0"
903	2"	Equal panel spacing	24'2"	20'0"

Options

Full Vision doors come with a variety of options to address your building requirements. Along with a variety of finishing options and glazing materials, full view doors can be designed with additional stiles or custom section arrangements, creating a unique look with design flexibility.

Design Options:

Glazing Material

1/2" (12.7 mm) insulated
1/2" (12.7 mm) insulated tempered
1/8" (3.2 mm) tempered
1/4" (6.4 mm) tempered
1/8" (3.2 mm) plexiglass
1/4" (6.4 mm) wire glass
1/8" (3.2 mm) DSB glass
1/4" (6.4 mm) polycarbonate
Custom glazing options available

Finishing Options:

Standard finished include white or brown painted and clear anodized finish.

Premium finishing options include:

RAL color powder coat
Custom powder coating
Bronze, dark bronze, black or custom color anodized finishing

Performance Options:

High Cycle Springs (25K, 50K and 100K available)
3" heavy duty track (where not standard)
Double End Stiles
Carbon monoxide vents
Photo eyes, sensing edges and Operators
Sustainable Door Upgrade
Header (top) and Jamb Seals
Options to meet Wind load design pressure levels

Custom Options:

Mullions

Features and Benefits

Panel Design:	Recessed aluminum panel
Gauge:	0.75" thick extrusions .050" aluminum panels
Joint Design:	Tongue and groove with built in reinforcing fin
Thickness:	2-1/8"
Colors:	Clear, bronze, black, anodized, white, commercial brown. Custom colors available.
Limited Warranty:	5-year finish / 1-year material & workmanship

Specs/Drawing

Models	Literature(PDF)	Instruction Manual(PDF)
Aluminum
DSB Glass Model 902/903D	903 Brochure Sustainable Door Upgrade Brochure	Installation Manual Supplemental Installation
Insulated Glass Model 902/903I	903 Brochure Sustainable Door Upgrade Brochure	Installation Manual Supplemental Installation
Plexiglas Glass Model 902/903P	903 Brochure Sustainable Door Upgrade Brochure	Installation Manual Supplemental Installation
Ribbed Wire Mesh Glass Model 902/903M	903 Brochure Sustainable Door Upgrade Brochure	Installation Manual Supplemental Installation

Click on appropriate icon to download
To use the Spec Wizard, click here

(What is Spec Wizard?)

Brochures

903 Brochure

COMMERCIAL OVERVIEW

Springs and Hardware

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

14 gauge hinges
Commercial 10 ball steel rollers with options for nylon tire rollers
10,000 cycle torsion springs
Steel step plate and lift handle for easy operation
Inside slide lock for increase security
19 gauge steel hinge support plates
18-gauge single end stiles; 16-gauge double end stiles
Galvanized aircraft cables with 7:1 safety factory
2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details
